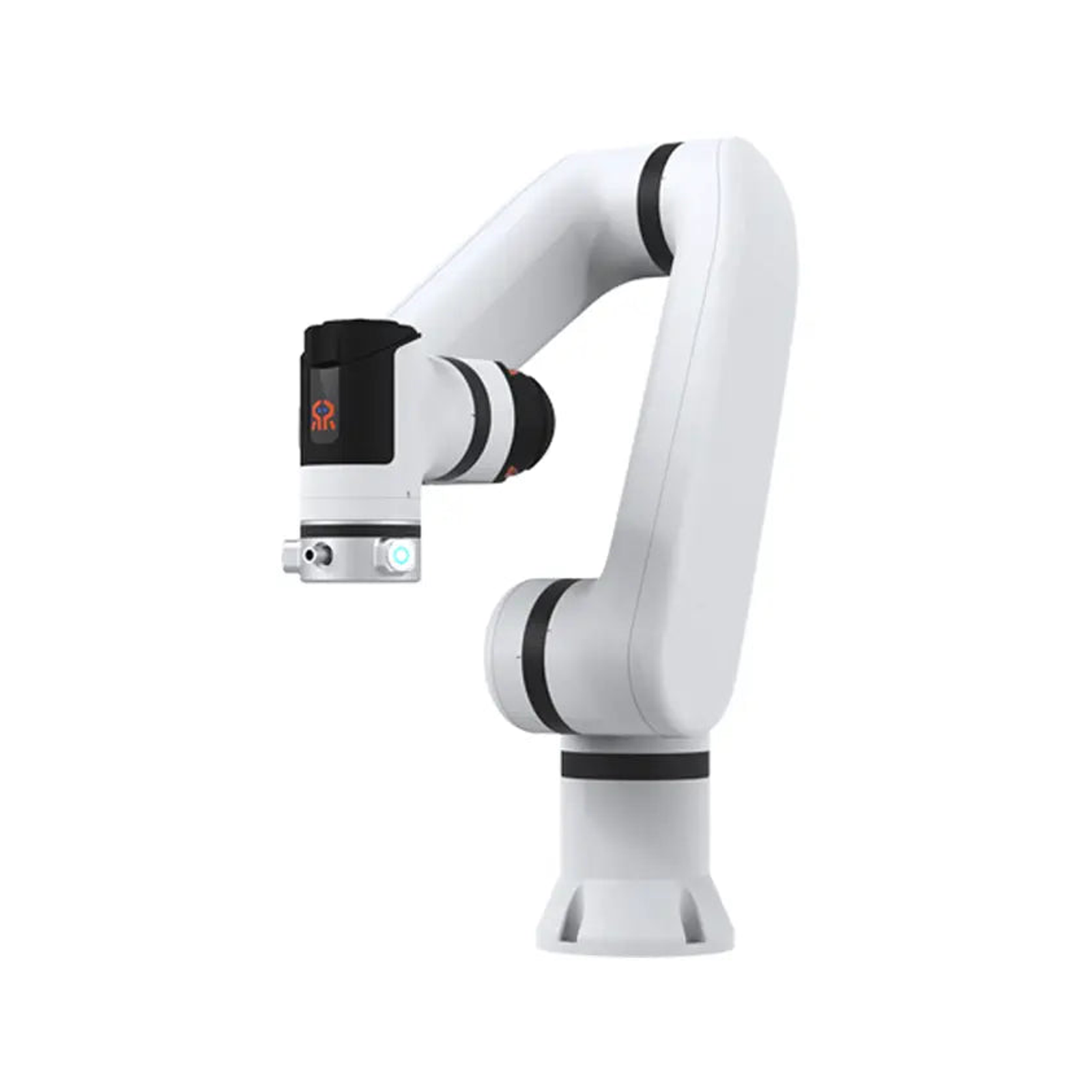

RealMan ECO65-B is the baseline economical 6-DoF robot arm from RealMan, designed for companies and research labs that need a balance of precision, strength, and affordability in an ultra-lightweight package. Weighing only 7.8 kg with an integrated controller and delivering 5 kg rated payload and 9 kg peak, the ECO65-B achieves a payload-to-weight ratio that far exceeds conventional cobots. With 610 mm reach, ±0.05 mm repeatability, IP54 dust and splash protection, and DC 20–30V low-voltage operation, it is easy to integrate into mobile platforms and compact workcells without power infrastructure. Self-developed joints combining motor, encoder, and driver simplify maintenance and enable RealMan's signature lightweight design.
Key Highlights
- 6 DoF; 5 kg rated payload; 9 kg peak; 610 mm reach; 7.8 kg total weight
- ±0.05 mm repeatability; integrated controller; no external cabinet needed
- IP54 protection; DC 20-30V; 200W; suitable for mobile platforms
- Ultra-lightweight: 1/4 the weight of comparable cobots at same payload class
- Self-developed joints with motor, encoder, and driver in one module
- Part of RealMan ECO series alongside ECO65-6F
