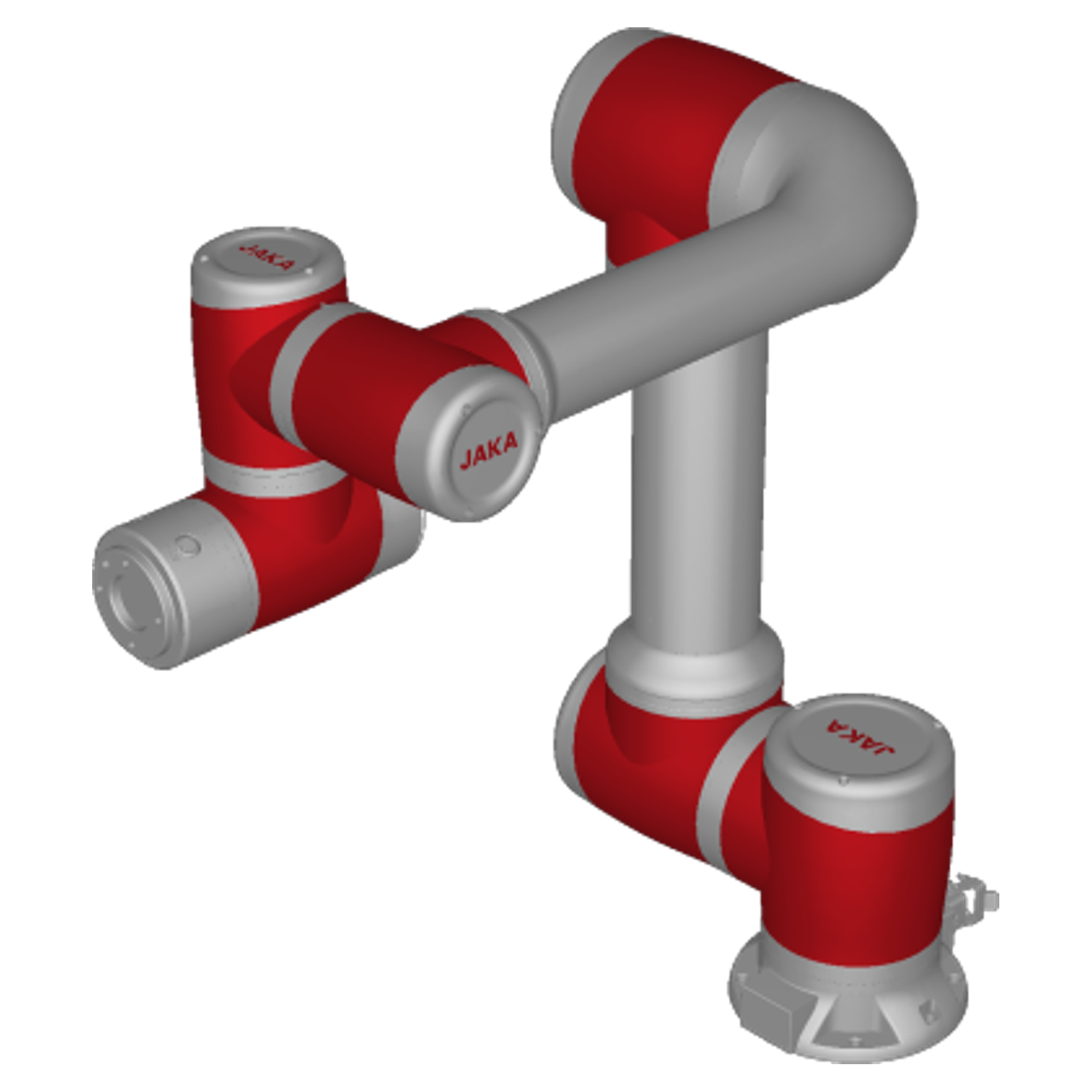

JAKA Zu5 is one of the most widely deployed JAKA cobots, delivering a 5 kg payload and approximately 800 mm reach with ±0.02 mm repeatability. The Zu5 is a versatile general-purpose cobot suited to assembly, machine tending, quality inspection, gluing, screwdriving, and pick-and-place in electronics, food and beverage, and metal manufacturing environments. Compact at approximately 18 kg, the Zu5 is compatible with the full JAKA ecosystem including JAKA Lens vision, 6-axis force sensors, and open SDK development.
Key Highlights
- 5 kg payload; approximately 800 mm reach; ~18 kg; ±0.02 mm repeatability
- 6 DoF; general-purpose cobot for assembly, inspection, and tending
- JAKA App control; JAKA Lens vision; 6-axis force sensor compatible
- ROS and Python SDK; touch pendant; full JAKA ecosystem
- Deployed in electronics, food and beverage, and metal manufacturing
- Part of JAKA Zu series: Zu3, Zu5, Zu7, Zu12, Zu18, Zu20, Zu30
