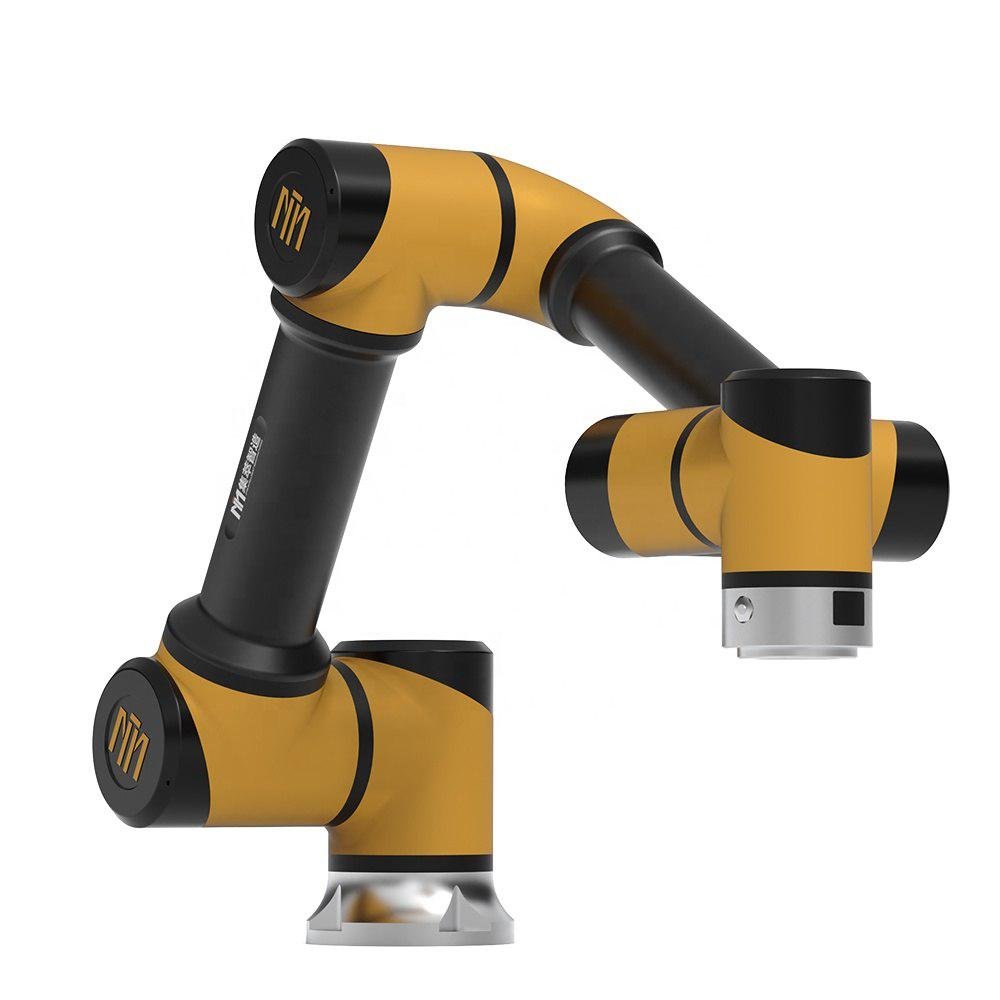

IIMT CI-05 is the most widely deployed member of the IIMT CI series, offering a 5 kg payload and 900 mm reach in a 21 kg platform with ±0.02 mm repeatability and 20% faster working speed than its predecessor. Described by IIMT as the smallest industrial collaborative robot arm in their portfolio, the CI-05 is designed for bench-top and constrained production line deployments where compact dimensions and straightforward programming are essential. Linux-based with TCP/IP and Modbus connectivity, it supports laser welding, CNC loading and unloading, palletizing, dispensing, painting, assembly, quality inspection, and screw tightening across automotive, electronics, food and beverage, and metal manufacturing environments.
Key Highlights
- 5 kg payload; 900 mm reach; 21 kg; 146 mm footprint; ±0.02 mm repeatability
- 6 DoF; 20% faster working speed than previous generation
- Linux-based; TCP/IP and Modbus; Android, iOS, and Windows compatible
- Built-in torque feedback collision protection; IP54 protection
- Suited for laser welding, CNC tending, palletizing, and quality inspection
- Plug-and-play rapid deployment for small-batch and multi-variant production
