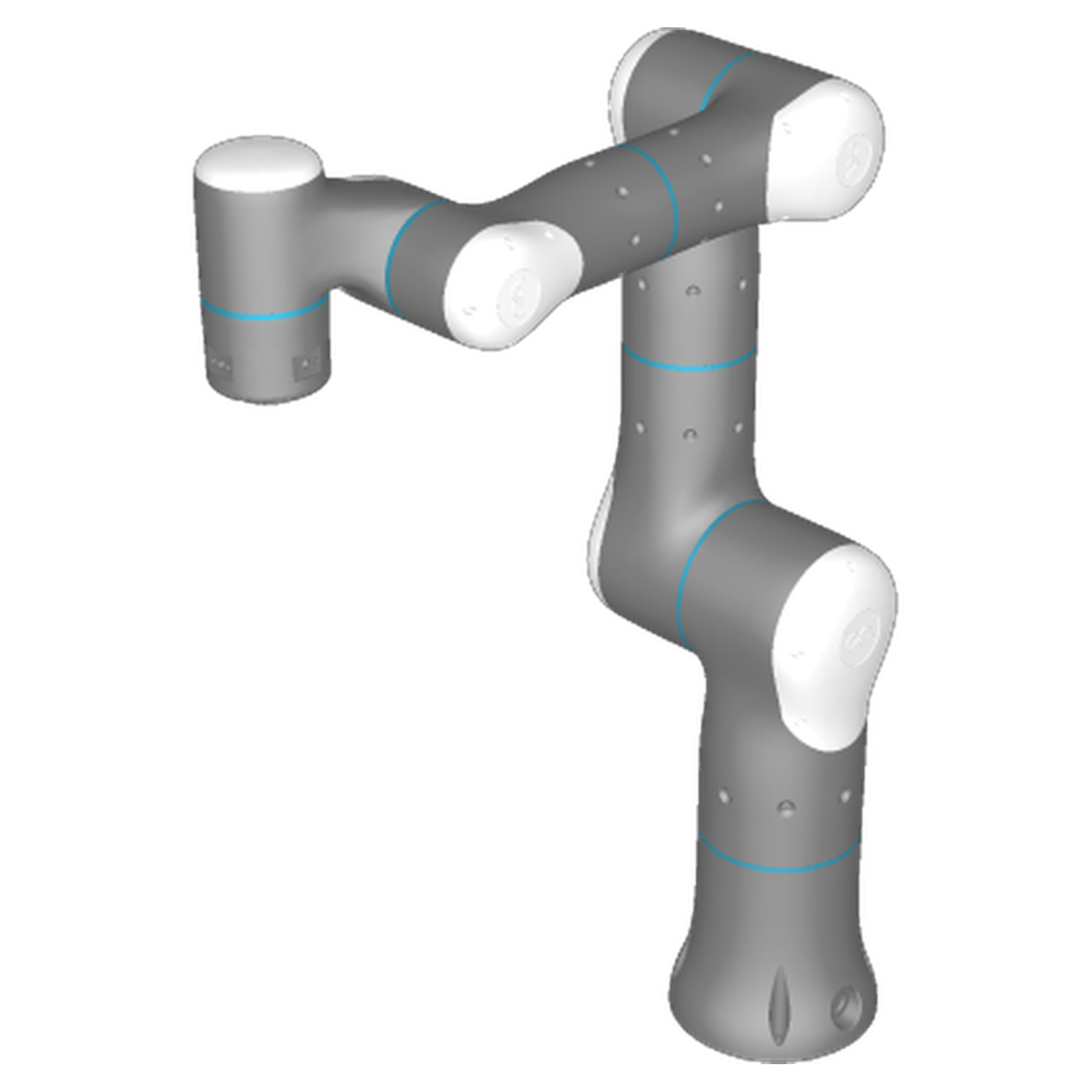

Flexiv Rizon 10 is a 7-DoF adaptive robot arm delivering a 10 kg payload and 941 mm reach with a maximum TCP force of 350 N and force sensing down to 0.2 N. As part of the world's first adaptive robot series, the Rizon 10 integrates deeply engineered force control, machine vision, and AI technology to operate in changing, uncertain environments with human-like adaptability. It can perform precision tasks including insertion, polishing, assembly, and force-limited contact operations that rigid position-controlled robots cannot reliably execute. CE and ETL certified, IP65 protected for harsh environments, and ISO 13849-1 PL d Cat. 3 compliant, the Rizon 10 is suitable for direct collaboration and unsupervised operation in demanding industrial settings.
Key Highlights
- 7 DoF; 10 kg payload; 941 mm reach; 350 N max TCP force
- Force sensing to 0.2 N; whole-body multi-point force control
- AI vision hand-eye coordination; transferable intelligence across tasks
- CE, ETL, and ISO 13849-1 PL d Cat. 3 certified; IP65 protection
- Hesper controller with real-time motion/force control; multi-channel comms
- Suited for insertion, polishing, assembly, and force-limited contact tasks
