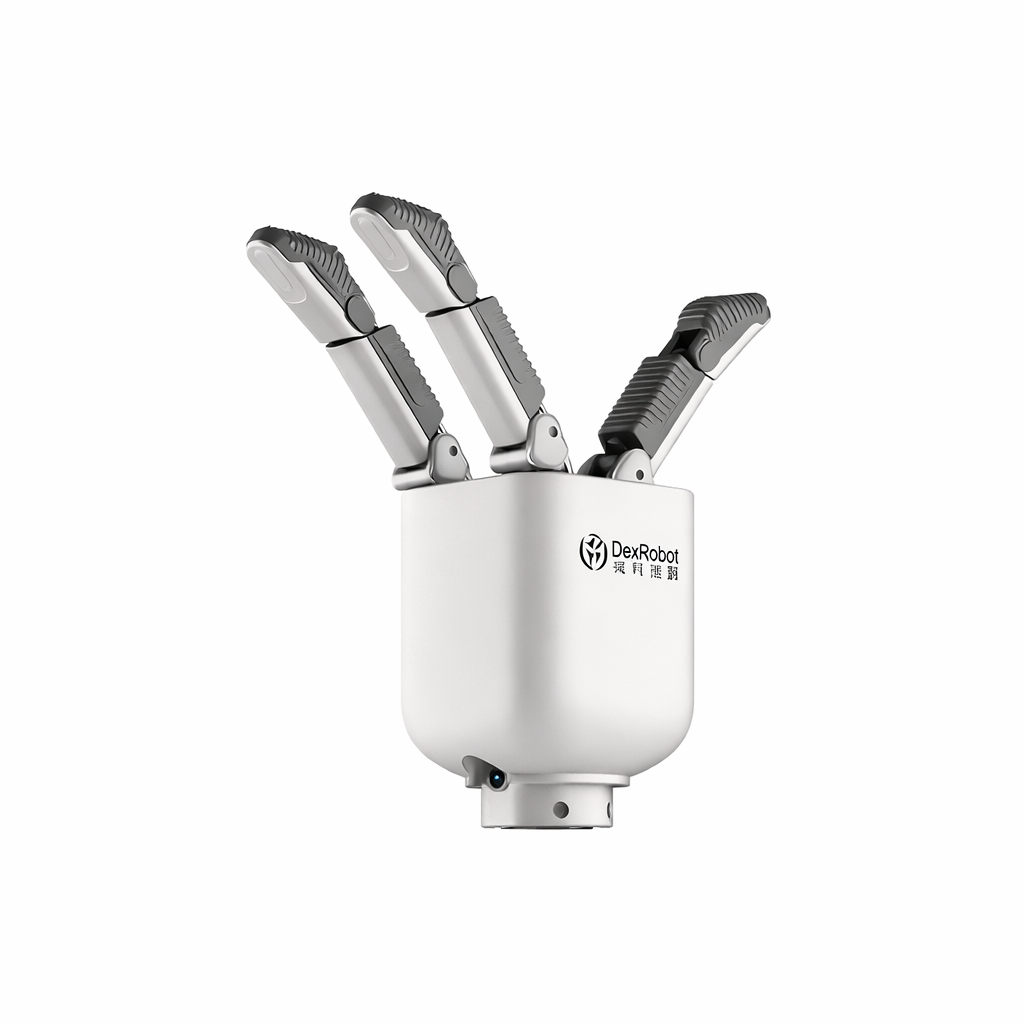

DexHand021 S is an ultra-lightweight industrial-grade three-fingered dexterous hand from DexRobot, engineered to deliver 80% of core human hand manipulations at an accessible price point. Weighing just 0.6 kg — roughly the weight of a bottle of cola — it combines a rigid-flexible coupling transmission system with a bionic soft body surface to achieve natural, precise grasping across industrial, logistics, research, and medical environments.
With 8 degrees of freedom, 22 N fingertip grip force scaling up to 100 N peak at the base, and a rated load of 2.5 kg (5 kg maximum), the DexHand021 S handles the full range of everyday manipulation tasks with room to spare. Its gear, tendon, and linkage three-mode transmission delivers stepless torque control and dynamic self-adaptation, while the elastic soft body with micro-textured surface provides touch sensation close to real human skin for delicate handling tasks.
Built for reliability, the DexHand021 S has passed 200,000-cycle loaded life certification and supports CAN FD and RS485 communication for seamless integration with humanoid robots, cobots, and custom platforms. An open-source SDK with multi-protocol support makes secondary development fast and accessible out of the box.
Key Highlights
- Three-fingered design covering 80% of core hand manipulations at 0.6 kg total weight
- 8 DoF; grip force 22 N (fingertip) → 44 N (pad) → 100 N peak (base); rated load 2.5 kg, max 5 kg
- Gear + tendon + linkage three-mode transmission; stepless torque control; max 150°/s finger speed
- Bionic elastic soft body; micro-textured surface; tactile sensor option available
- 200,000-cycle loaded life certification; ±0.5 mm repeat positioning accuracy
- CAN FD / RS485 communication; DC 24V; open-source SDK for rapid integration
- Suited for electronics assembly, conveyor sorting, bionics research, surgical instrument delivery
