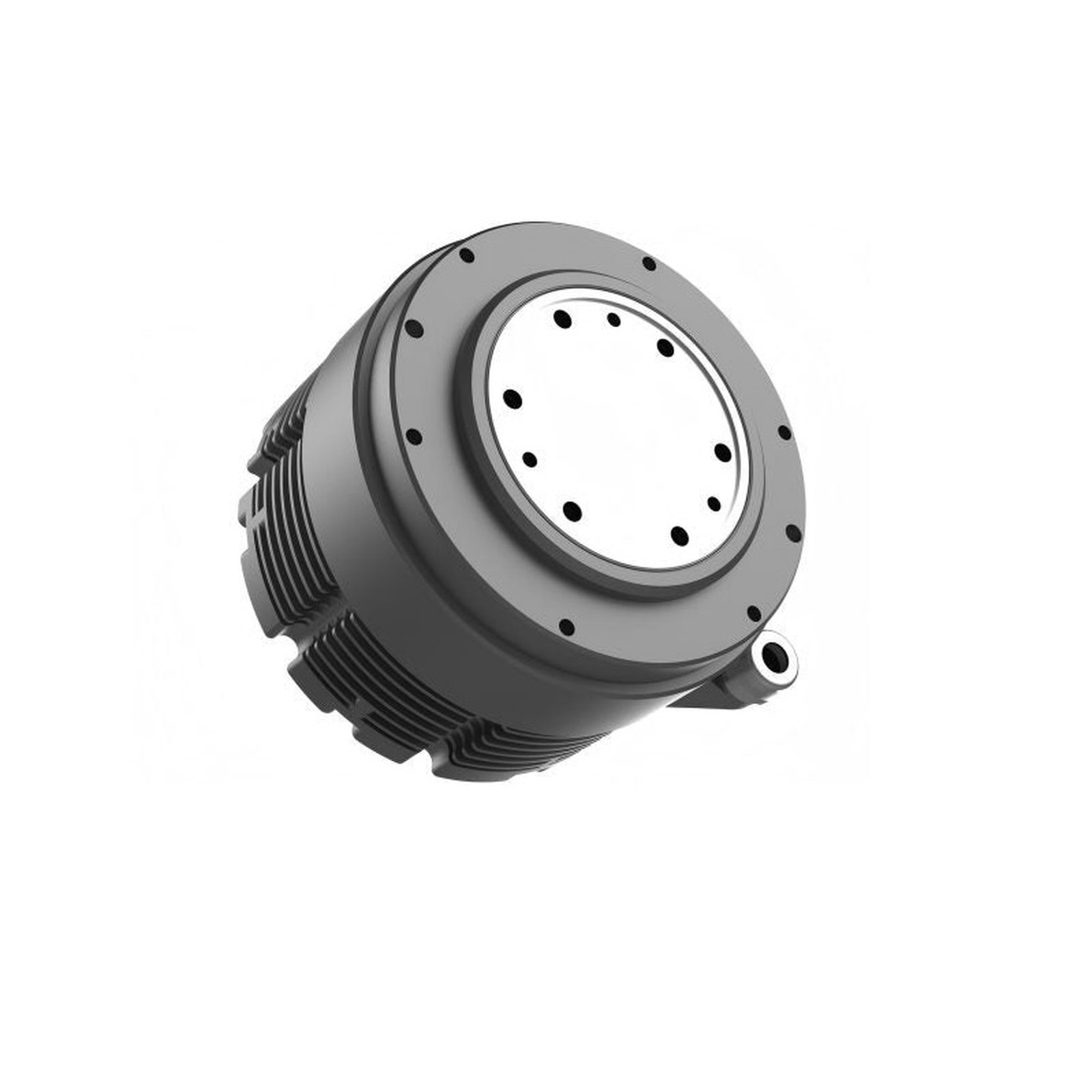

DEEP Robotics J100-64P is the mid-tier member of the J100 series, delivering 180 N·m peak torque and 65 N·m rated torque in a 2.72 kg package, with a torque density of 66.2 N·m/kg. Designed for medium to large legged robots, the J100-64P offers the highest torque coefficient in the J100 range at 2.2 N·m/Arms, enabling greater torque output per unit of current for higher payload capability. Like all J80/J100 series joints, it uses high-speed EtherCAT communication for multi-joint synchronisation, a battery-free absolute multi-turn encoder for reliable positioning, and IP67-rated construction for outdoor durability. Its drive-control separation architecture and compatibility with mainstream motor drivers make it straightforward to integrate into custom robotic platforms.
Key Highlights
- 180 N·m peak torque; 65 N·m rated torque; 2.72 kg; 66.2 N·m/kg torque density
- Highest torque coefficient in J100 range: 2.2 N·m/Arms for superior payload output
- 18 rad/s max speed; 126 x 88 mm form factor
- IP67 rated for outdoor and industrial all-weather operation
- Battery-free absolute multi-turn encoder: 17-bit single-turn, 16-bit multi-turn
- EtherCAT communication; drive-control separation; mainstream driver compatible
