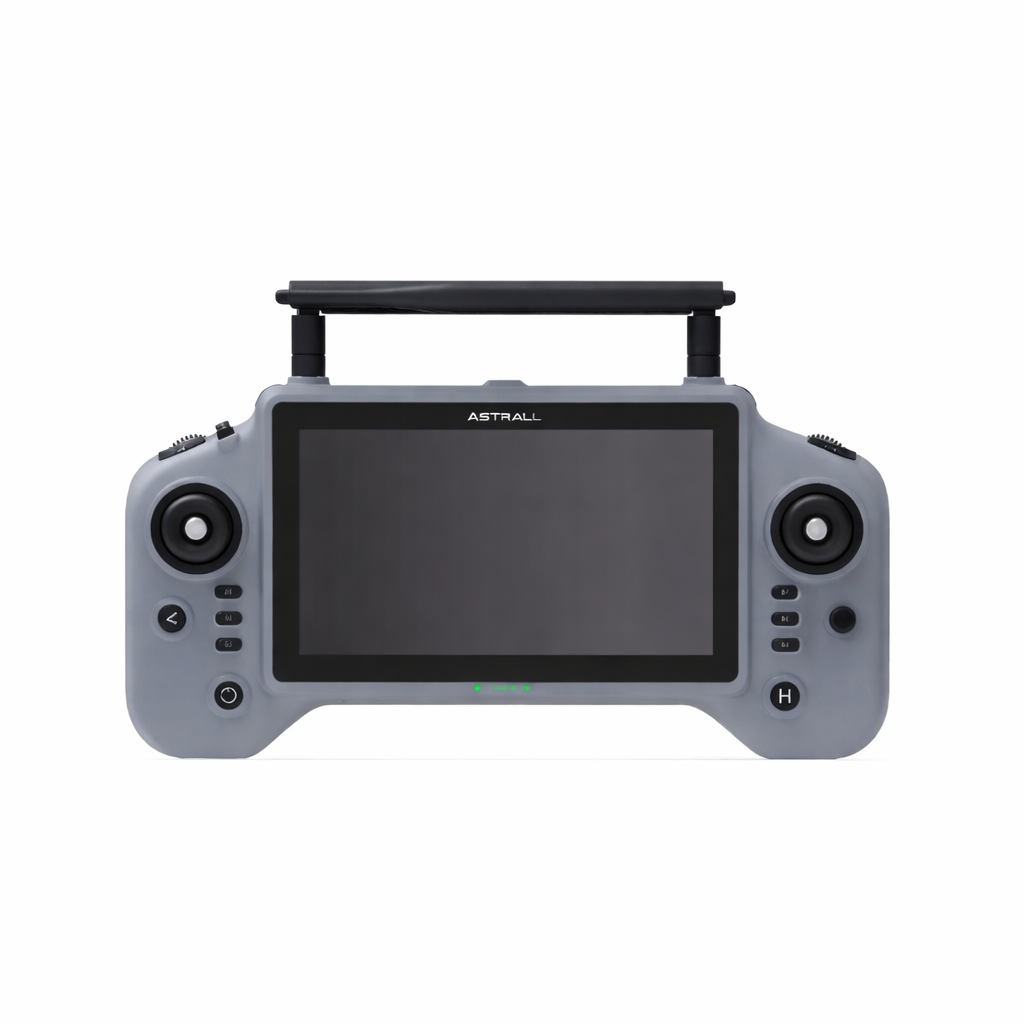

ASTRALL RM 100 series is an intelligent HD video transmission remote controller purpose-built for mobile robots including quadrupeds, humanoids, UAVs, and unmanned vehicles. With a maximum transmission range of 30 km, 30 Mbps data rate, and under 15 ms air interface latency, it delivers crisp, real-time HD control feedback in the most demanding field environments. The 6.97-inch 1920x1080 display at over 2000 nits brightness remains clearly visible in direct sunlight, while an Android 12 platform with an 8-core processor and 4 GB RAM supports advanced robot control software. Multi-device control enables simultaneous management of the robot body, dual-gimbal camera, and robotic arm from one controller. IP65-rated for outdoor field use, with 9,600 mAh battery supporting over 10 hours of operation and 35W PD fast charging.
Key Highlights
- 30 km max transmission range; 30 Mbps; under 15 ms air interface latency
- 6.97-inch 1920x1080 screen; over 2000 nits outdoor-visible brightness
- Android 12; 8-core processor; 4 GB RAM; 4K 30 FPS decode performance
- Multi-device: simultaneously controls robot, gimbal camera, and robotic arm
- IP65 rated; 9600 mAh; over 10 hours runtime; 35W PD fast charging
- GPS, GLONASS, Galileo, BeiDou positioning; 800 MHz, 1.4 GHz, 2.4 GHz bands
- USB-A, Type-C, HDMI 2.1, microSD, mini-PCIe (4G optional); Bluetooth 5.0; Wi-Fi 6
